Product presentation

Product Datasheet

BOP cleaning assembly

WirlTool, BOP Magnets & Magnum fishing magnet

The Innovar WirlTool® combined with the powerful Innovar Innomag® and the Magnum Fishing Magnet® ensures the most efficient Blow Out Preventer (BOP) cleanout.


With the use of this bottom-hole assembly for BOP cleaning, you will minimize the risk of water cutting the BOP sealing elements as opposed to traditional jetting. The Innovar BOP cleaning assembly assures efficient removal of shavings and debris from the BOP and Riser. It prevents expensive and time-consuming maintenance of the BOP on the surface, it reduces spill of mud on deck when the riser is laid down and it reduces the risk of BOP problems during operations caused by shavings.

Applications

Cleaning of debris from the BOP and marine riser
  • Prior to pressure testing
  • After milling jobs
  • Prior to pulling the BOP

Benefits

  • Quick and effective BOP cleaning
  • Minimized risk of water cutting the BOP sealing elements
  • Reduced spill of mud on deck
  • Reduced risk of BOP problems during operation caused by shavings
  • Prevent expensive and time-consuming maintenance of BOP on surface

Features

Innomag® BOP Magnet
  • Innovar magnet technology
  • Drill pipe connections
  • Large flow by area
WirlTool®
  • WirlTool Circulation Ports
  • Drill pipe connections
Magnum Fishing Magnet®
  • Innovar laser focus magnet technology
  • Drill pipe connection
  • Up to 2800 kg lifting capacity

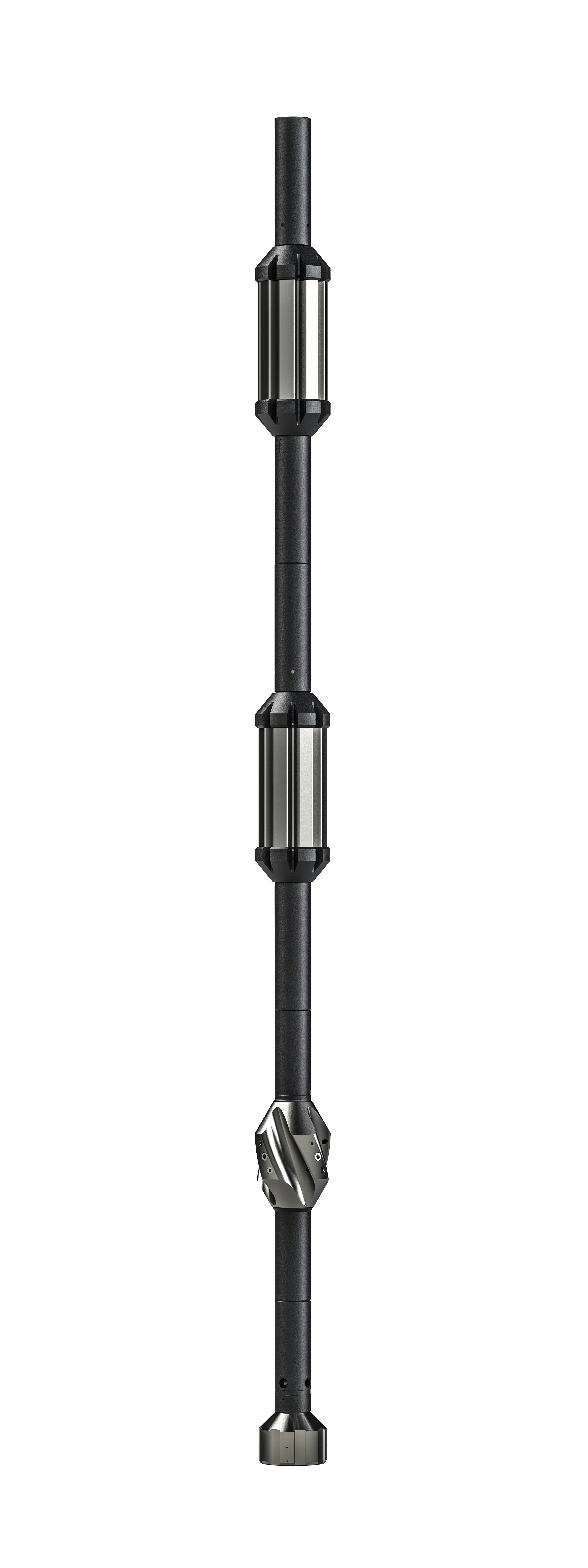

bop assembly

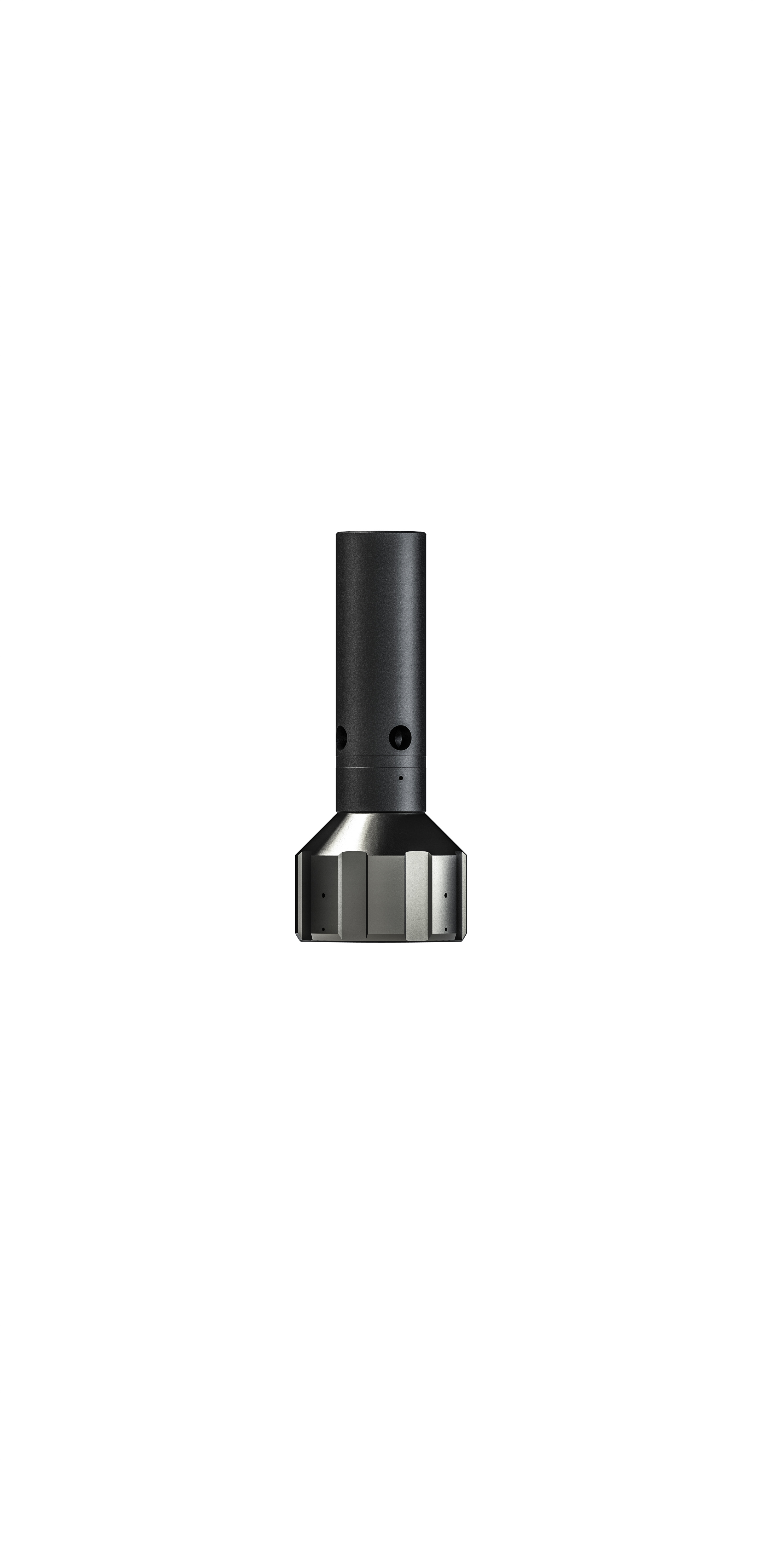

Flat Bottom Fishing Magnets

12,10" Magnum Fishing Magnet®

8,30" Magnum Fishing Magnet®
Models FM 135L & FM 128L
fm 135l

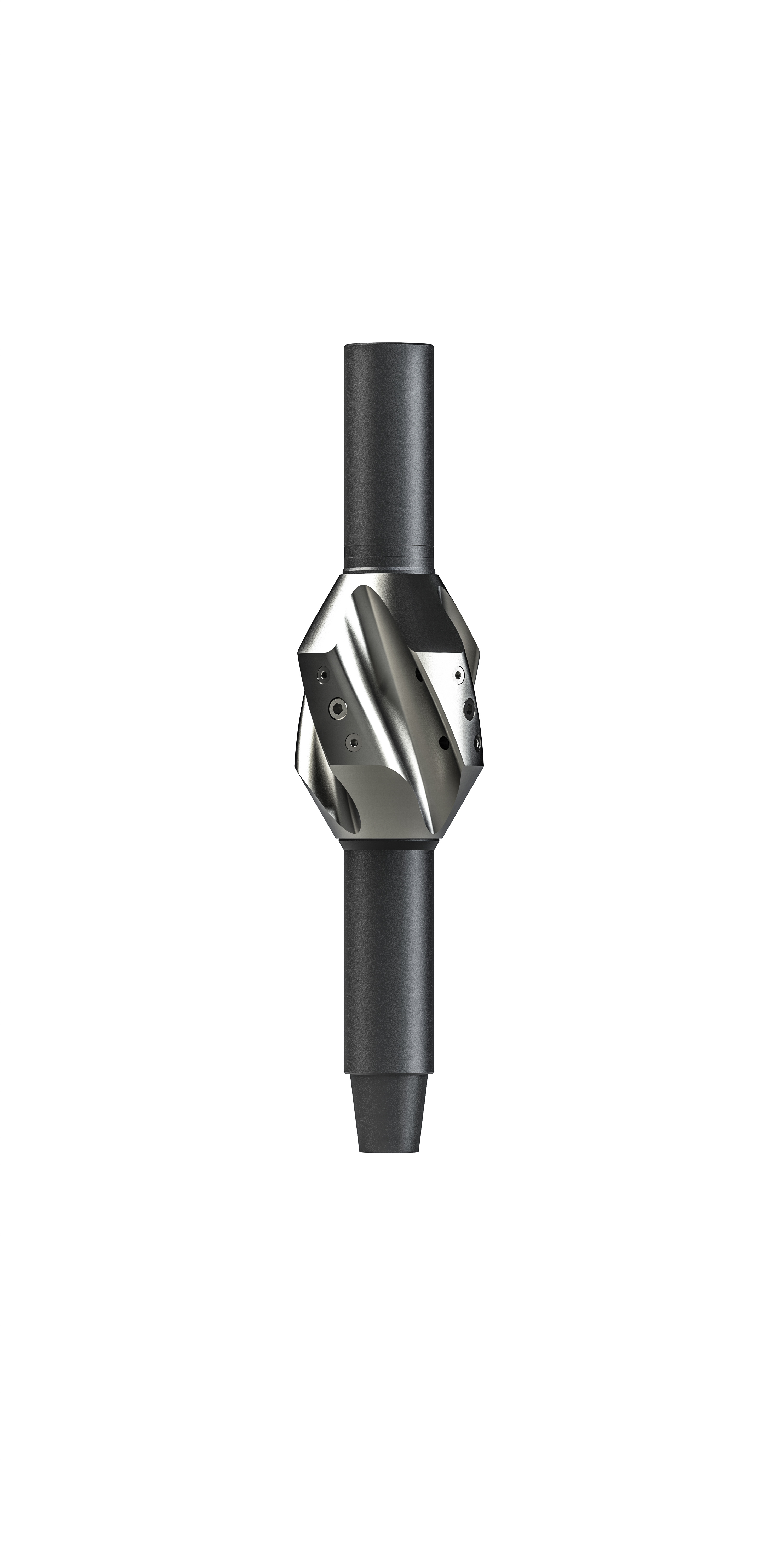

BOP Cleaning Tool

13 3/8" WirlTool®, Circulating Tool

Model WT 100

wt100 wirl

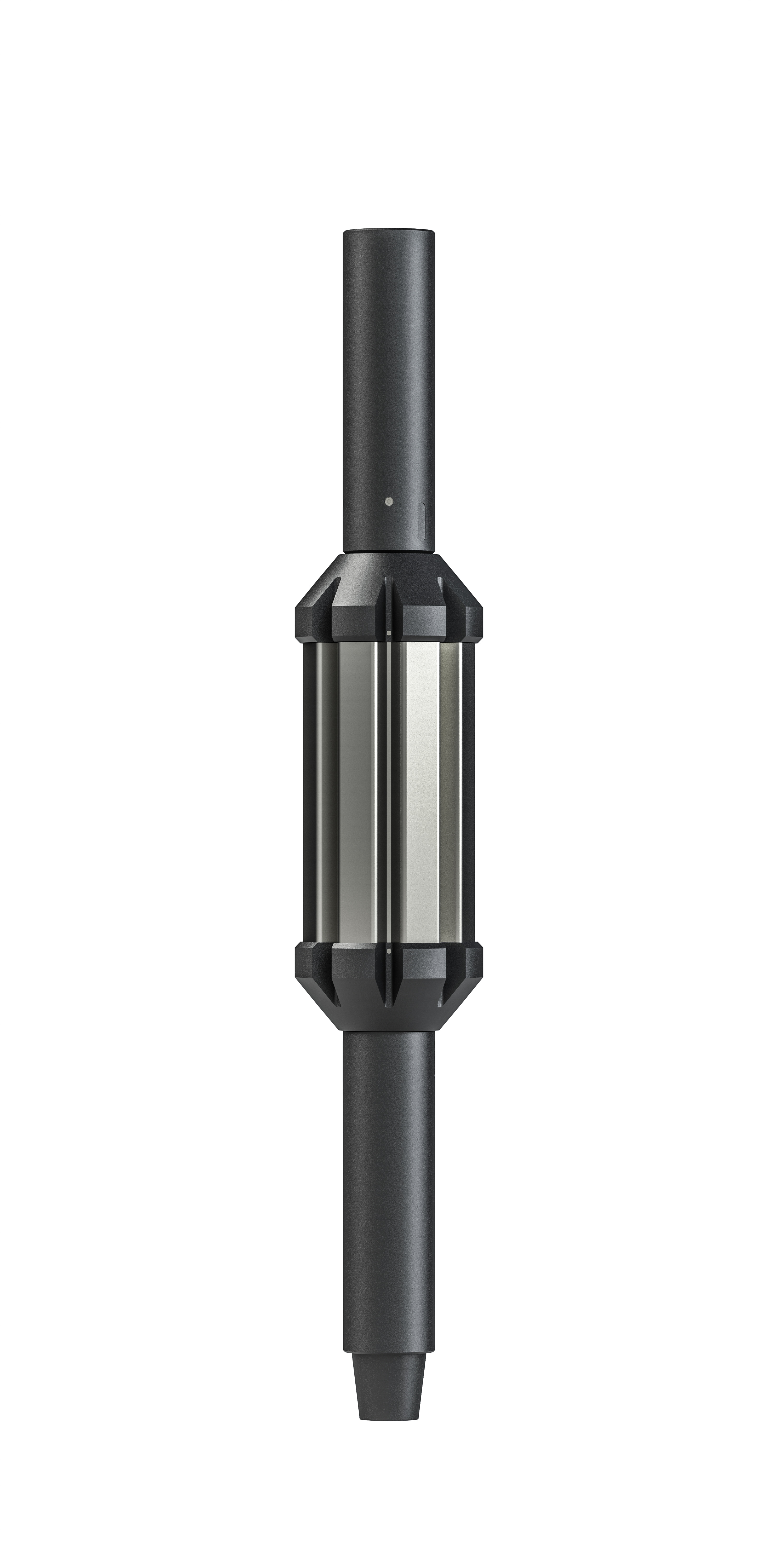

String Magnet

13 3/8" Innomag® BOP Magnet

Model BM 103
bm 103 magnet

Video of the Innovar BOP Cleaning Assembly
