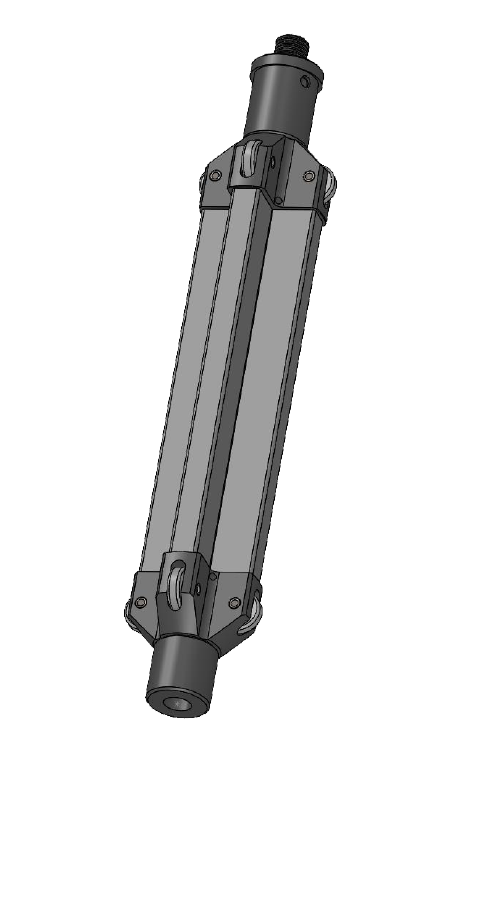

BOP Clean Up
Model MX 101
For cleaning out 5.5” tubing/ liner on wireline
| Dimensional data | Mechanical properties | Operational data |
|---|---|---|
| Body OD (inch): 4.0 | Body material: AISI 4145 | Connection: 1 1/16” SR pxb |
| OD across roller wheels (inch): 4.5 | Sour service resistant: No | Swarf capacity (kg): 5 |
| Fish neck OD (inch): 2.3 | Tensile yield strength (lbs): 61000 | |
| Length (mm): 600 | Tensile yield strength (mt): 27 | |
| Weight (kg): 15 | Magnet ribs (ea): 4 |
