BOP Clean Up

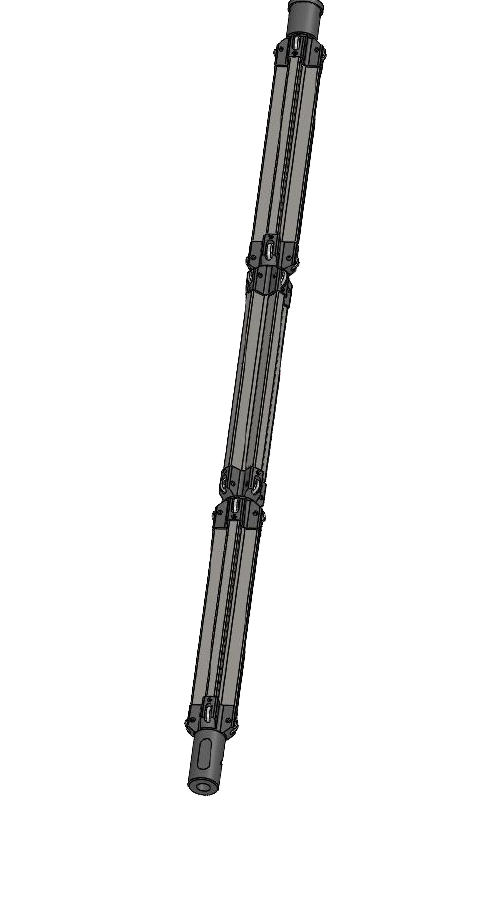

Model MX 300
For cleaning out 4.5” tubing/ liner on wireline. Can be shielded for transportation by helicopter.
| Dimensional data | Mechanical properties | Operational data |
|---|---|---|
| Body OD (inch): 3.11 | Body material: AISI 4145 | Connection: 1 1/16” SR pxb |
| OD across roller wheels (inch): 3.50 | Sour service resistant: No | Swarf capacity (kg): 10 |
| Fish neck OD (inch): 2.30 | Tensile yield strength (lbs): 61000 | |
| Length (mm): 1467 | Tensile yield strength (mt): 27 | |
| Weight (kg): 31 | Magnet ribs (ea): 4 | Rec’d make-up torque (ft-lbs): Hand tight |
